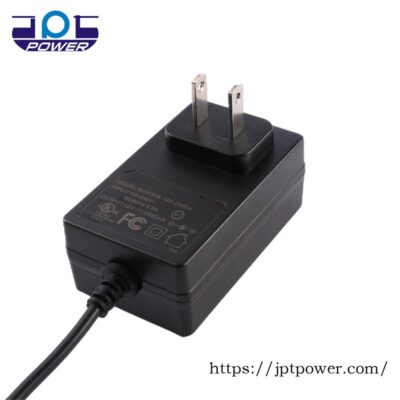

30w Power Adapter
JP-19020 SERIES
The 30W AC power adapter is used in a wide range of applications, on stereos, Bluetooth speakers, game consoles, humidifiers, air purifiers, security monitors, POS machines, smart homes, LED lighting. It has achieved 60335/61558/1310 safety standards, which is very important information for you.
All JPT Power 30W power adapters come with a minimum 3-year warranty. We keep a safety stock of all electronic materials in our warehouse to ensure faster delivery of all orders.
- OEM& ODM order available
- Always Get quoted on Factory Price
- 24hrs Technical support
- At least 3 Year Warranty
This 30W AC power adapter has output voltages from 5V to 48V and a maximum current of 3.5A..It’s a great performer and a great seller in the market. we performed 6 rigorous checks on the power adapter before sending it to you. we can guarantee that every power adapter was tested during production.
This 30W power adapter has been subjected to rigorous reliability tests by our engineers. For example: Temperature test, High-voltage insulation test, Lighting surge test, ESD test, Hi-temperature test, Hi-low temperature impact test, Vibration test. These tests are particularly important for the 30W power adapter and we are confident in the quality of the product.
·Single Output:30W
·Universal AC Input:100-240Vac (90-264Vac)
·Safety Standards:60335/61558/1310/CQC
·Regulate Output With Low Ripple &Noise
·Output Protections: OVP/SCP/OCP
· Efficiency: Meet DOE/CEC/ERP/NRCan
· Modified and Custom Design Available
· 3 Year Warranty
| Safety Approvals | |
| 60335:CE/GS/PSE/UKCA 61558:CE/UKCA/GS/SAA/EAC/PSB/PSB/LOA UL1310 CQC |
| Efficiency Standards VI | |
| DOE,NRCan,ERP,CEC No Load Power Consumption:＜0.1W |
| Product Parameters | |
| Universal Input | 100-240Vac (90-264Vac) |
| Input Frequency | 50/60Hz |
| Inrush Current | 60A max |
| Output Voltage | 5-48Vdc |
| Output Current | 10-3500mA |
| Dielectric | 3000VAC |
| Leakage Current | 0.25mA@2Pin;3.5mA@3Pin |
| Burn-In Test | 100% Full Load |
| MTBF | 50000 Hours MLK-HDBK-217F(25℃) |
| Operating Temperature | -25℃~+40℃ |
| Storage Temperature | -30℃~+50℃ |
| Operating Humidity | 10~90% RH non-condensing |
| Storage Humidity | 5~95% RH non-condensing |
| Vibration | 10-100Hz 1G 10min/1 cycle period of 30mins along X.Y Z axes |
| EPS | RoHS/CA65 |
| Typical Model No.: | Output voltage (V) / Output Current (mA) |
| SAW30-050-3500 | 5 / 3500 |
| SAW30-090-3000 | 9 / 3000 |
| SAW30-120-2500 | 12 / 2500 |
| SAW30-240-1250 | 24 / 1250 |
| SAW30-360-0833 | 36 / 833 |
| SAW30-480-0625 | 48 / 625 |
| Mechanical | |
| US/JP/CN | L 71.2*W 43*H 29mm |
| EU/Kr | L 71.2*W 43*H 29mm |
| UK | L 71.2*W 48.7*H 29mm |
| AU | L 71.2*W 43*H 29mm |
| Desktop | L 92*W 45*H 29mm |
| Optional Type | |
| Plug-in：US/JP/CN/EU/AU/GB/Kr Colour：Black/White | |
| ■Fixed Wall Mount (DC Cord) | |
| □Fixed Wall Mount (USB) | |
| ■Interchangeable (DC Cord) | |
| □Interchangeable (USB) | |
| ■Desktop |
Plug Adapter Types
JPT Power:Your professional 30w Power Adapter Manufacturer
JPTPower has been deeply involved in the field of AC power adaptors for many years and has been a professional manufacturer of 30W AC power adaptors in China. Brand new, SMT equipment, fully automated DIP equipment, fully automated AOI inspection equipment can reduce the production defect rate to 300 ppm, and a professional quality inspection team will ensure that the product delivered to you is perfect.
If you are considering establishing your own 30W power adapter brand, JPT has the capability to provide brand design and provide screen printing or sticker packaging services.
OEM and ODM options are available to you.
We have 3 types of 30W power adapters: Wall Mount power adapter, exchangeable power adapter, and Desktop power adapter to give you more options.
If you are distributing locally or selling on Amazon, you can provide us with your branding or packaging requirements and we will provide you with a small sample size for confirmation.
Your professional power adapter manufacturer and his sales team will be online 24/7 to assist with any questions regarding 30W power adapters and other power adapters.
Contact us now for your next power adapter by country order.
