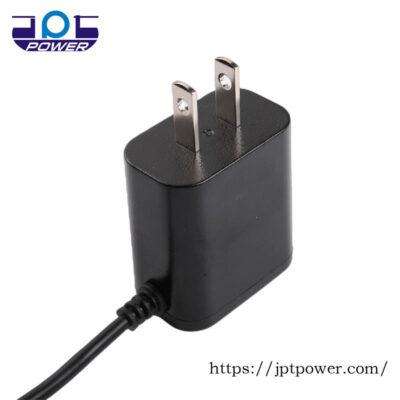

12w Power Adapter OEM
JP-17070 SERIES
The 12W AC power adapter is used in a wide range of applications, including routers, set-top boxes, Internet boxes, game consoles, humidifiers, air purifiers, automated pet feeders and security monitors. This 12W AC power adapter has a compact design and weighs only 80g.
It has a vertical design, which usually saves space in the socket. It is also very safe, as its housing is made of PC and has a temperature resistance rating of UL94-V0 and can withstand temperatures up to 120°C.
We have obtained UL/FCC/CE/GS/UKCA/SAA/KC certificate for 12W power adapters.
- OEM& ODM order available
- Always Get quoted on Factory Price
- 24hrs Technical support
- At least 3 Year Warranty
JPT Power has numerous production facilities and inspection equipment to ensure that this 12W AC USB （Wall Plug ）power adapter meets customer requirements. The management of the production department is highly professional and has been in the power adapter field for at least 10 years.
We pay special attention to the problems that occur during the production of 12W AC power adapters. This is why our quality staff carry out routine inspections of the production line every hour, thus monitoring the strict quality requirements.
The 12W AC power adapter is subjected to 6 strict inspections before it is sent to you. We can guarantee that each power adapter has been tested during the production process.
·Single Output:12W
·Universal AC Input:100-240Vac
·Safety Standards:62368/61347/61558/60950/UL1310/GB8898
·Regulate Output With Low Ripple &Noise
·Output Protections: OVP/SCP/OCP
· Efficiency: Meet DOE/CEC/ERP/NRCan
· Modified and Custom Design Available
· 3 Year Warranty
| Safety Approvals | |
| 62368:UL/FCC/CE/IC/CCC 61347/61558/60950:CE 1310: UL CQC:GB8898 |
| Efficiency Standards VI | |
| DOE,NRCan,ERP,CEC No Load Power Consumption:＜0.1W |
| Product Parameters | |
| Universal Input | 100-240Vac (90-264Vac) |
| Input Frequency | 50/60Hz |
| Inrush Current | 40A max |
| Output Voltage | 5-24Vdc |
| Output Current | 10-2000mA |
| Dielectric | 3000VAC |
| Leakage Current | 0.25mA@2Pin;3.5mA@3Pin |
| Burn-In Test | 100% Full Load |
| MTBF | 50000 Hours MLK-HDBK-217F(25℃) |
| Operating Temperature | -25℃~+40℃ |
| Storage Temperature | -30℃~+50℃ |
| Operating Humidity | 10~90% RH non-condensing |
| Storage Humidity | 5~95% RH non-condensing |
| Vibration | 10-100Hz 1G 10min/1 cycle period of 30mins along X.Y Z axes |
| EPS | RoHS/CA65 |
| Typical Model No.: | Output voltage (V) / Output Current (mA) |
| SAW12D-050-2000 | 5 / 2000 |
| SAW12D-090-1100 | 9 / 1330 |
| SAW12D-120-1000 | 12 /1000 |
| SAW12D-240-0500 | 24 / 500 |
| Mechanical | |
| US/JP/CN | L 39.2*W 24*H 42mm |
| EU/Kr | L 41.5*W 24*H 44.5mm |
| UK | L 49*W 41.6*H 43mm |
| AU | L 39.2*W 24*H 60.2mm |
| Desktop | / |
| Optional Type | |
| Plug-in：US/JP/CN/EU/AU/GB/Kr Colour：Black/White | |
| ■Fixed Wall Mount (DC Cord) | |
| ■Fixed Wall Mount (USB) | |
| □Interchangeable (DC Cord) | |
| □Interchangeable (USB) | |
| □Desktop |
JPT Power:Your Top 12W Power Adapter Supplier
If you are looking for the best power adapter supplier, then you have come to the right place.
In addition to the 12W AC power adapter, we have a wide range of other models to choose from. Examples include 12W AC power adapters, 30W AC power adapters and many more.
What makes JPT Power the best power adapter provider for many customers?This comes from years of experience in the AC power adapter industry. With continued improvements in product design, production process and quality control, we are able to provide our customers with high-quality 12W AC power adapters.
OEM and ODM are available for you to choose from.
If you are distributing locally or selling on Amazon, you can provide your branded screen or packaging requirements and we will provide a small sample for you to confirm.
We offer wholesale and small order 12W power adapters, so feel free to drop in for a quote.
We know what you need and our professional sales team will help you get the right 12W AC power adapter for you.
Contact us now for your next power adapter order.
